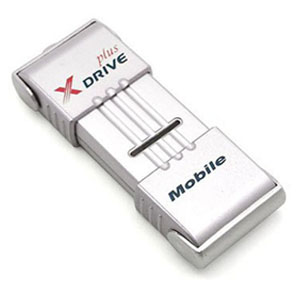

⊙ XDrive Plus Mobile
PC system with usb ports |
Desktop & Notebook & Sub-Notebook |
|
Operating System |
Windows98 /SE/ME/2000/XP, Windows
CE 3.0
Mac OS 9.0 & higher, Linux 2.4 above |
|
Memory Capacity |
16MB / 32MB / 64MB / 128MB /
256MB / 512MB / 1GB |
|
Interface |
USB Spec. 2.0 or 1.1
UHIC (Universal Host Controller Interface)
OHCI (Open Host Controller Interface) |
|
Data retention |
Up to 10 years |
|
Suspend Current |
<300uA, compliant ti USB spec.
of<500uA |
|
Operating Current |
<40mA |
Data Reading Speed
Data Writing Speed
|
8MB/sec
6MB/sec |
Dimension
|
65mm x 25mm x 10mm (W/CAP) |
Relative Humidity
Under storage
|
5% ~ 85% |
|
Storage Temperature |
-20C to ~ 80C |
|
Operating Temperature |
0C to ~ 45C |
|
Power |
USB Bus power (4.5V ~ 5.5V) |
|
Certification |
FCC, CE, MIC |
|
Weight |
13g (approx) |
|
I/O connector |
Korea TTA Standard 2400S 24Pins
Connector |
|
Charging singnal |
On charging : Red light On
End charging : Green light On |
|
Data Communication |
CDMA2000 1X EVDO (2.4Mbps)
Program : PC Sync (Mobile manufacturer providing)
Data : Schedule, Photo, Movie...etc. |
|
|
|
| |
 |
1. 3 IN 1 Function.
Portable storage
Flash memory based portable storage : 16MB ~ 1GB
Mobile charging by USB power
2. FCC, CE, MIC.
|
|
| |
| |
 |
3. Charging system of constant voltage with
limited current.
On charging : Red light On
End charging : Green ight On
4. First Product
in the world.
Patent Pending |
|
| |
| |
 |
5.
Data communication by USB.
CDMA2000 1X EVDO support 2.4 Mbps Data communication
PC Sync program for managing phone book, schedule, melody
and image, Movie...etc.
|
|
| |
| |
 |
6.
Carry your important data.
Tiny and light portable storage device, freely transporting
My secret files. (In your pocket or hang around the neck)
7. Enjoy your
digital style.
You can transfer your mobile data to PC (or PC to Mobile)
Do not worry about your data in your mobile. |
|
| |
| |
 |
8. You
can charge your mobile wherever you are!
Mobile charging is
available by usb power of PC.
You don't need to pay money for buying extra Mobile charger
or Charging fee.
Just connect your Mobile to XDRIVE PLUS MOBILE |
|
|
|
▶ A/S : 02) 716-4446
▶
A/S 기간 : 1년 (단, 사용자의 잘못으로 인한 고장은 소비자 부담)
▶
10일이내에 제품 하자 발생시 1:1 교환하며 배송료는 (주)어스비 테크놀러지에서 부담합니다.
▶
단순변심으로 인한 반품시에는 배송료를 구매자분께서 부담하셔야 합니다.
▶
(주) 어스비 테크놀러지 고객센터
▶
☎ 02) 716-3600, FAX : 02) 716-4447
▶ 우) 140-905 서울 용산구 원효로2가 58-3 B1
|
